Front Door Limiter: Service and Repair

51 21 280 Removing And Installing/Replacing Door Stop On Left Or Right Front Door







Necessary preliminary work:
- Remove sound insulation in the area of the door stop
- Completely close side window necessary

IMPORTANT: After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

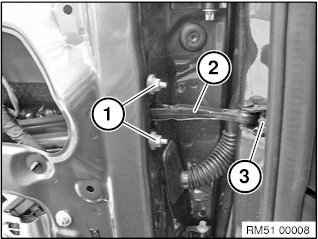

Release screw (3).

Tightening torque 51 21 6AZ.

Unscrew nuts (1).

Tightening torque 51 21 7AZ.

Feed out door stop (1) via door cut-out and place to one side.
