Rear Bumper Reinforcement: Service and Repair

51 12 050 Removing And Installing/Replacing Support For Rear Bumper Trim







Necessary preliminary work:
- Remove bumper trim

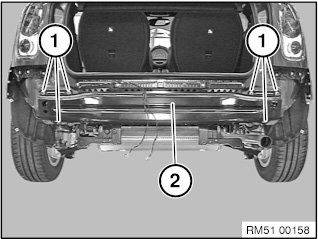

If necessary, detach cable for ultrasonic transducer from support (2).

Release nuts (1) on left/right and remove support (2).

Tightening torque 51 12 1AZ.
