Front Bumper Reinforcement: Service and Repair

51 11 050 Removing And Installing/Replacing Support For Front Bumper Trim







Necessary preliminary work:
- Remove front bumper trim.







NOTE: The operation is described on the left side; proceed in the same way for the right side.

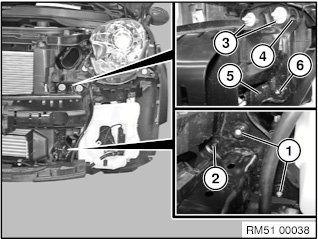

Undo screws (1) from rear.

Tightening torque 51 11 4AZ

Release screw (2).

Tightening torque 51 11 8AZ

Unscrew nuts (3).

Tightening torque 51 11 3AZ

Release screw (4).

Tightening torque 51 11 8AZ

Release nut (5) from rear.

Tightening torque 51 11 3AZ

Release screw (6) from rear.

Tightening torque 51 11 4AZ

Remove support for bumper trim.







Installation note:
Modify impact absorber at top and bottom.
