65 13 070 Removing and Installing/Replacing Speakers (Mid-Range Speaker, Front Door Left and Right)



65 13 070 Removing And Installing/Replacing Speakers (Mid-Range Speaker, Front Door Left And Right)







Necessary preliminary work:
- Remove front door trim panel







Release screws.

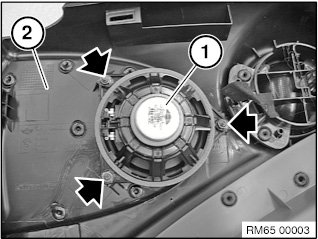

Remove speaker (1) from door trim panel (2).
