65 12 050 Removing and Installing/Replacing Left or Right Central Bass Speaker (Under Front Seat)

65 12 050 Removing And Installing/Replacing Left Or Right Central Bass Speaker (Under Front Seat)







Necessary preliminary work:
- Remove left or right front seat.
- Remove entrance cover strip on rear left or right.

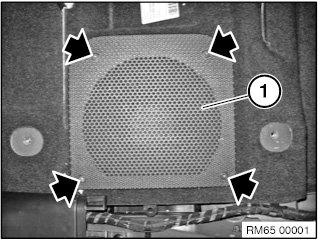

Release screws.
Remove cover (1) upwards.

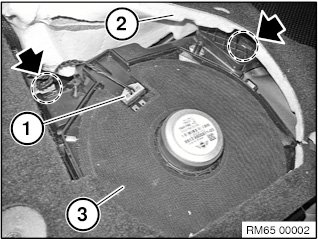

Release nuts at marked points.
Fold up the carpet (2) as shown.
Unfasten plug connection (1) and disconnect.
Feed out central bass speaker (3) upwards.
