62 10 130 Removing And Installing Complete Navigation Instrument Panel

62 10 130 Removing And Installing Complete Navigation Instrument Panel







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Disconnect battery earth lead
- Remove centre console cover

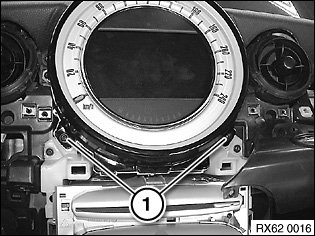

Release screws (1).

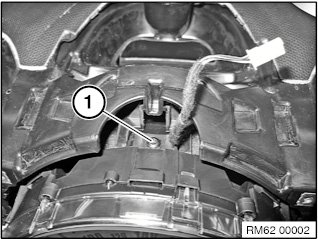

Release screw (1).
Pull back complete instrument panel slightly.

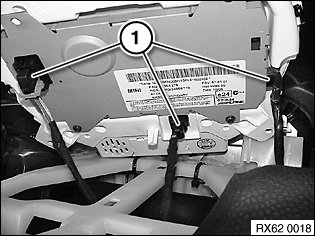

Unlock and disconnect plug connections (1) and take off instrument panel.
