Tow Sensor: Service and Repair

65 75 055 Removing And Installing/Replacing Emergency Power Siren With Tilt Sensor







Necessary preliminary work:
- Remove rear right wheel arch cover

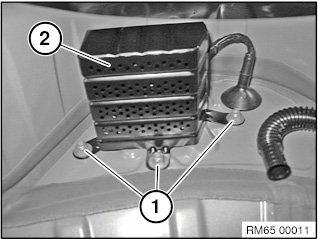

Unscrew nuts (1).
Tightening torque 65 75 3AZ.
Remove holder (2) with emergency power siren.

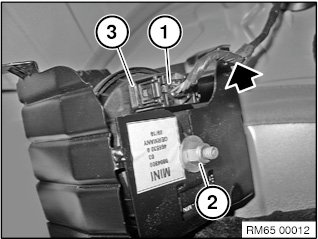

Unfasten plug connection (1) and disconnect.
Release cable fixation.
Remove holder with emergency power siren (3).

Replacement:
Slacken nut (2).
Remove emergency power siren (3) from holder.
Tightening torque 65 75 2AZ.

Installation note:
Make sure tilt sensor is correctly seated in holder (2).







Replacement:
Carry out vehicle programming/encoding.
