65 20 022 Replacing Roof-Mounted Aerial/Antenna

65 20 022 Removing And Installing/Renewing Roof-mounted Aerial (On Version With Slide/Tilt Sunroof)







Necessary preliminary work:
- Lower the headlining (do not remove completely)

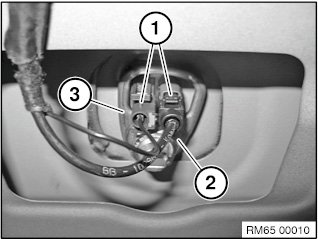

Unlock plug connections (1) and disconnect.
Slacken nut (2).
Tightening torque 65 20 2AZ.
Remove holder of base of aerial (3) downwards.

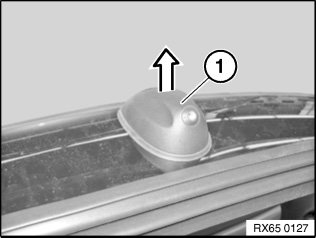

Remove roof aerial (1) in upward direction in direction of arrow.
