24 21 230 Removing Radial Shaft Seal of Right Axle Shaft (AISIN)

24 21 230 Removing Radial Shaft Seal Of Right Axle Shaft (AISIN) W16,N12,N14

Special tools required:







Necessary preliminary work:
- Remove transmission







Drive a hole into radial shaft seal using a centre punch.

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

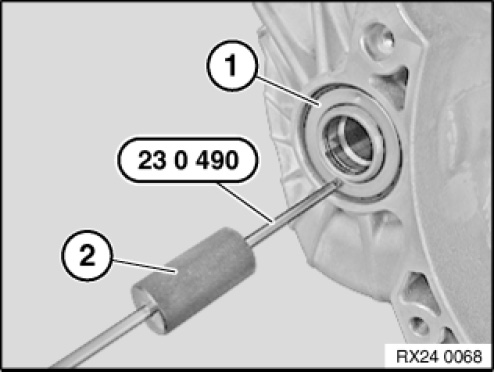

Screw special tool 23 0 490 into radial shaft seal.
Drive out radial shaft seal (1) with impact weight (2).







Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.

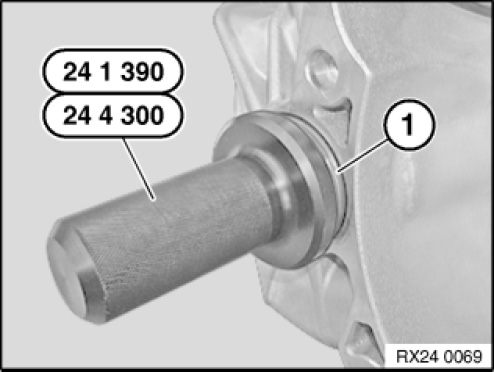

Drive shaft seal (1) firmly home with special tool 24 4 300.
