61 12 200 Replacing Wiring Harness In Left or Right Front Door

61 12 200 - Replacing wiring harness in left or right front door





Necessary preliminary tasks:
- Remove door trim panel carrier

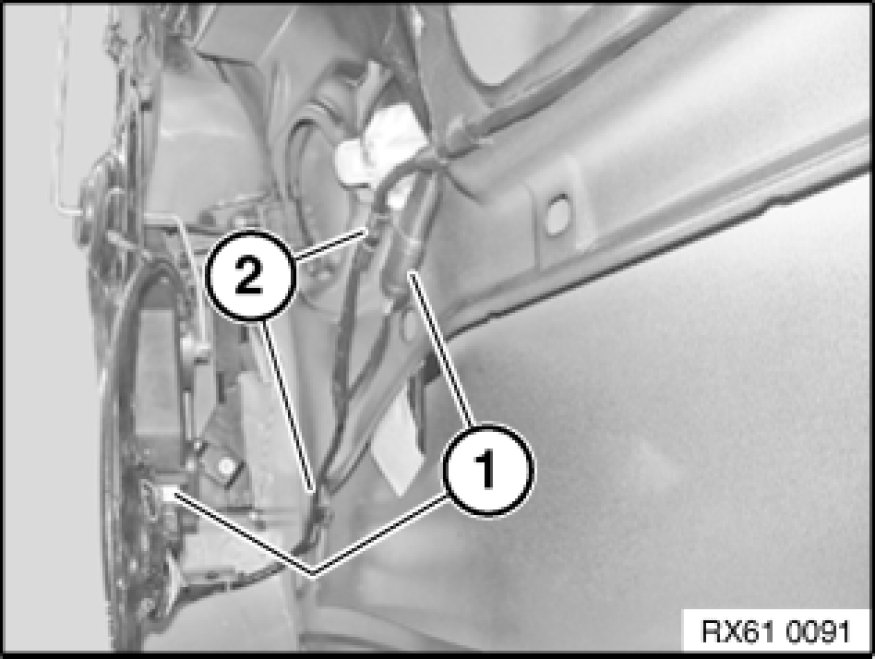

Disconnect plug connection (1).
Unclip door wiring harness at points (2).

Installation:
Make sure door wiring harness is correctly laid.





Disconnect plug connection (1).
Unclip door wiring harness at points (2).
Pull in rubber grommet (3) on inside of door.

Installation:
Make sure door wiring harness is correctly laid.

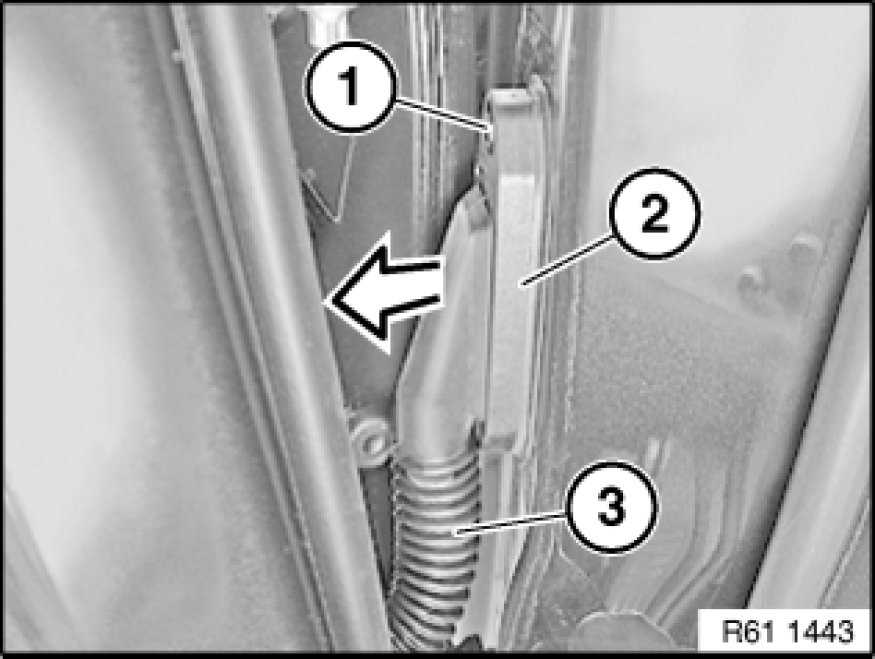

Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.
Disconnect plug connection behind.
Pull rubber grommet (3) out of front door.
Feed out door wiring harness towards front to A-pillar.
