Vacuum Pump: Service and Repair

11 66 000 Removing And Installing Or Replacing Vacuum Pump (N16)







Release vacuum connection to brake booster.

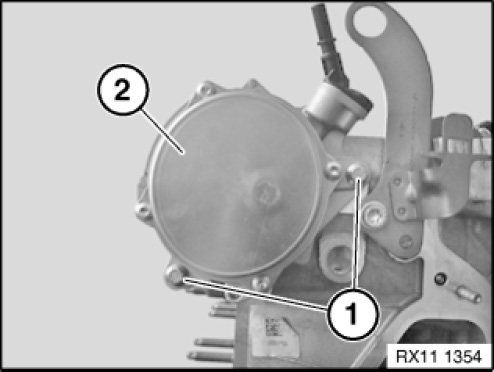

Release screws (1).
Pull off vacuum pump (2).

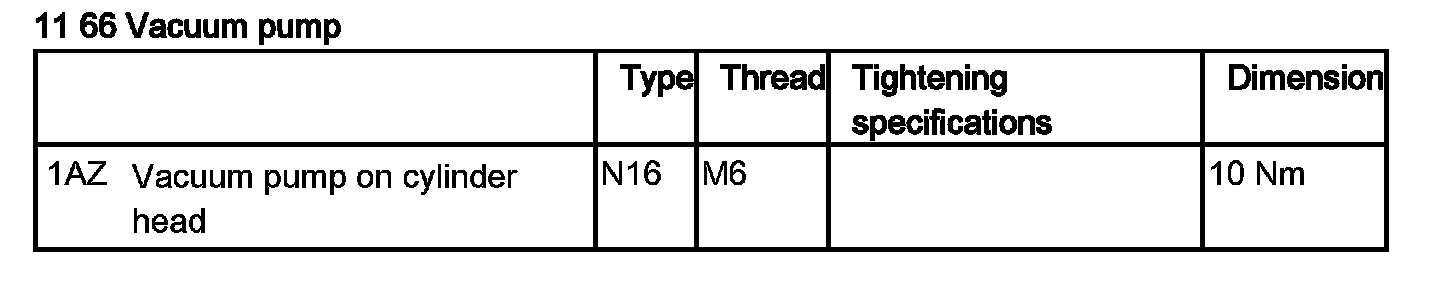

Tightening torque: 11 66 1AZ.







Installation note:
Replace sealing ring (1).







Assemble engine.
