Fuel Tank Vent: Service and Repair

13 90 500 Replace the tank vent valve (N12,N16)







Necessary preliminary work:
- Read out fault memory of DME control unit.
- Switch off ignition.

Installation location:
Tank vent valve is fitted at bottom on intake plenum.

NOTE: For a better overview, the following operation is shown on the engine after it has been removed.

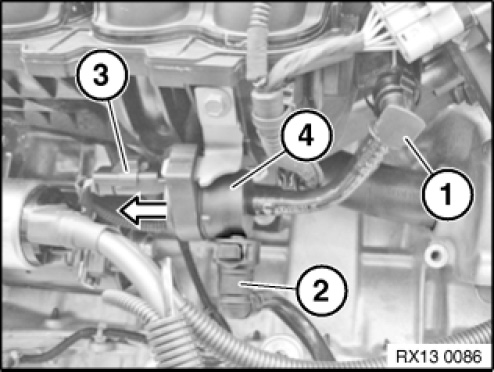

Unlock and disconnect lines (1 and 2).
Unlock connector (3) and remove.
Detach tank vent valve (4) from holder and remove.







NOTE:
Read out fault memory of DME control unit.
Delete fault memory.
