Leak Detector: Service and Repair

16 13 015 Removing and installing/replacing tank leak diagnosis module (petrol/gasoline vehicles with US DMTL version)







Necessary preliminary tasks:
- Remove carbon canister

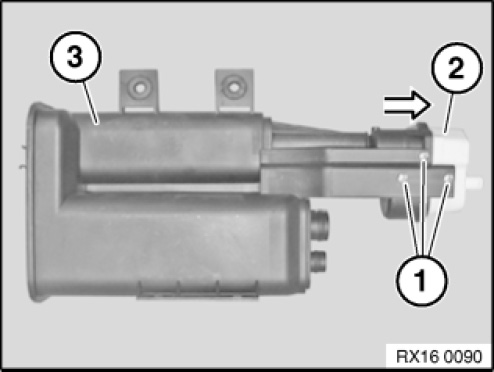

Release screws (1).
Pull off diagnostic module for tank leakage (2) from the carbon canister (3) in the direction of the arrow.

Installation note:
Check gasket and replace if necessary.
