61 31 080 Removing and Installing / Replacing Switch From Hazard Warning Lights



61 31 080 Removing And Installing / Replacing Switch From Hazard Warning Lights







Necessary preliminary tasks:
- Remove cover for instruments

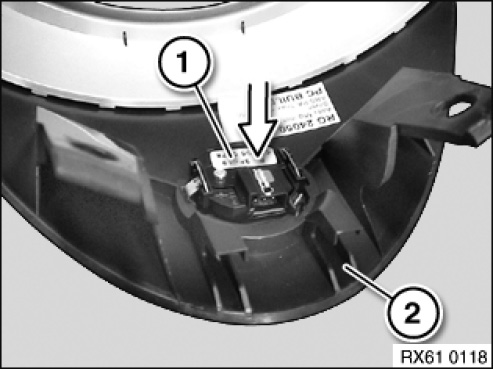

Press switch for hazard warning lights (1) in direction of arrow out of cover for instruments (2).
