65 81 060 Removing and Installing/Replacing Outside-Temperature Sensor (Without A/C System)

65 81 060 Removing And Installing/Replacing Outside-Temperature Sensor (Without A/C System)







Necessary preliminary tasks:
- Remove middle front radiator grille

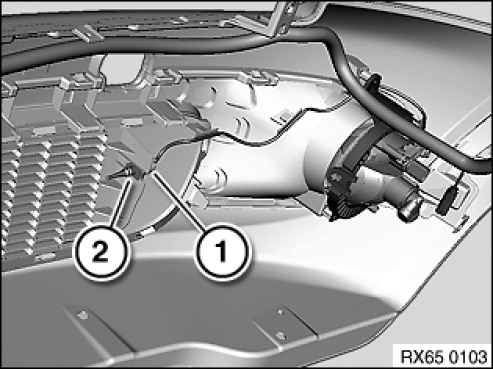

NOTE: For purposes of clarity, graphic shows bumper removed.

Disconnect plug connection (1) and unclip outside temperature sensor (2).

Installation:
Ensure correct cable routing.
