Solar Sensor: Service and Repair
64 11 992 Removing and installing/replacing
solar sensor
Special tools required:

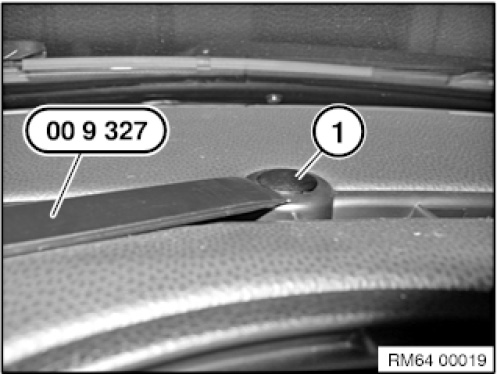

Unclip and pull out
solar sensor
(1) with special tool 00 9 327.

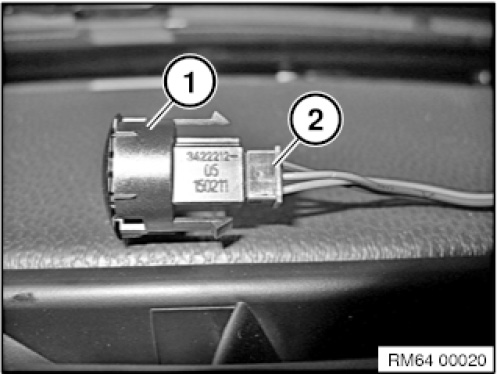

Unlock and disconnect plug connection (2) Remove
solar sensor
(1).
