11 41 519 Removing and Installing or Replacing the Solenoid Valve

11 41 519 Removing and installing or replacing the solenoid valve (N16)







Necessary preliminary tasks:
- Removing oil sump.

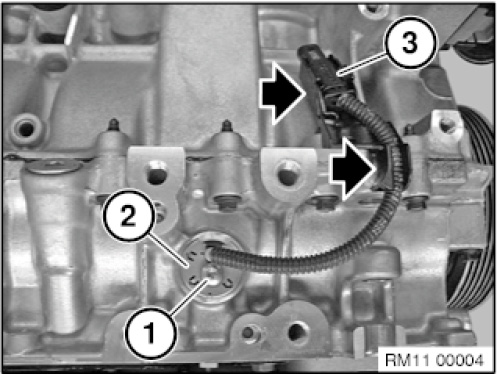

Release screw (1).
Remove sealing plate (2).
Disconnect plug connection (3).
Unclip cable from cable clip.

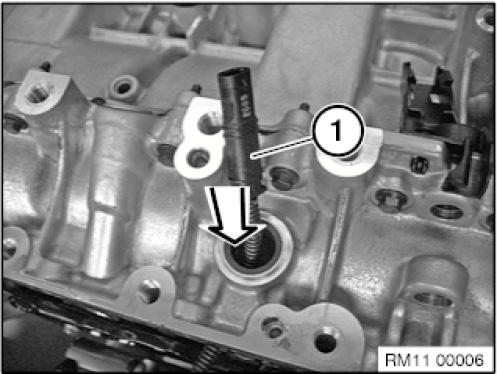

Press out counter support (1) with cable in direction of arrow.







Feed cable (1) through the bore hole.

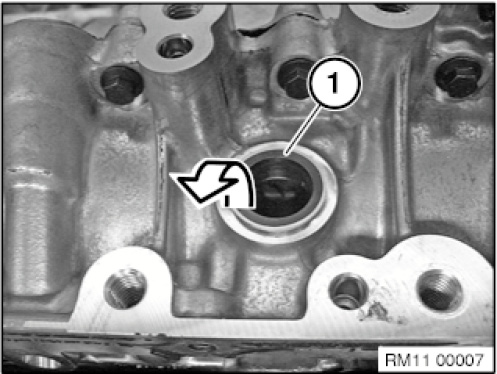

Remove sealing ring (1) in direction of arrow.

Installation note:
Replace sealing ring (1).

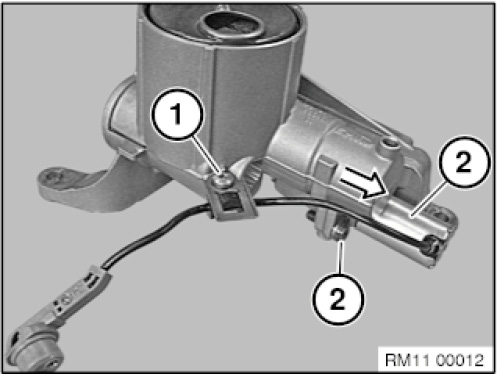

Release screw (1).
Release screw (2).
Pull solenoid valve (3) off in direction of arrow.







Installation note:

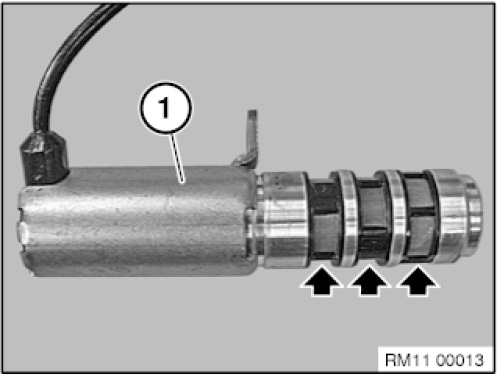

Check the strainer on the solenoid valve (1) for dirt contamination and clean if necessary.
Do not use compressed air to clean the strainer. Risk of damage.







Assemble engine.
