Engine Oil Pressure: Testing and Inspection

11 40 000 Checking Engine Oil Pressure (N16)

Special tools required:







Screw special tool 11 7 460 and 11 4 310 together.
Apply light coating of oil to sealing ring at pressure sensor (1) 100 bar.







Unscrew and remove oil filter housing.

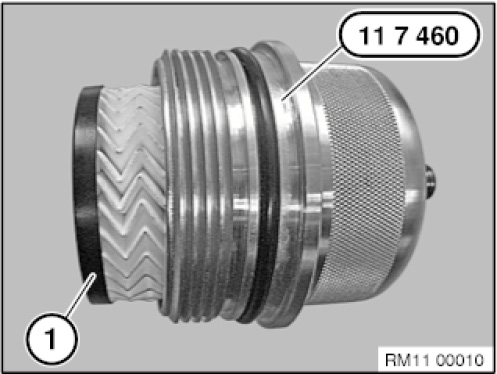

Insert oil filter element (1) into special tool 11 7 460.

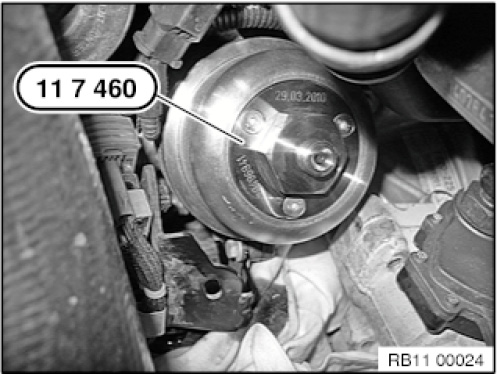

Screw in special tool 11 7 460.







Check engine oil pressure with pressure gauge.

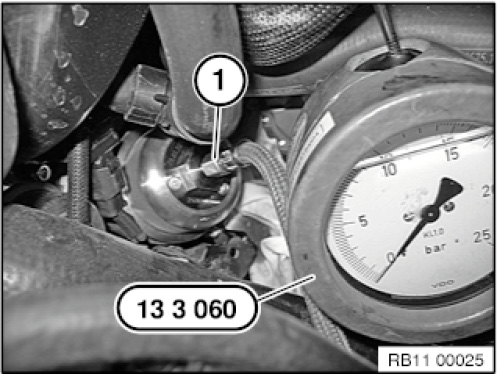

Connect special tools 11 9 560 / 13 3 063 and 13 3 061.
Start engine and check engine oil pressure.







Check engine oil pressure with diagnosis system.
Screw special tool 11 7 460 to oil filter housing.

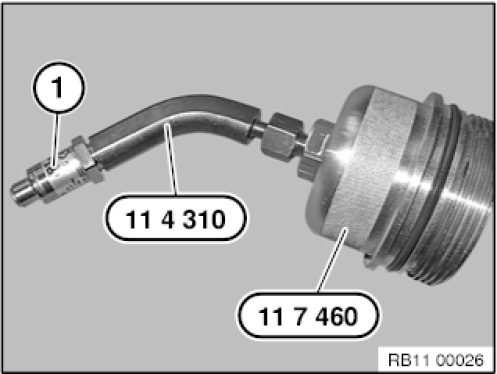

Screw special tool 11 4 310 to special tool 11 7 460.
Screw in pressure sensor (1) 100 bar at special tool 11 4 310 (finger-tight).

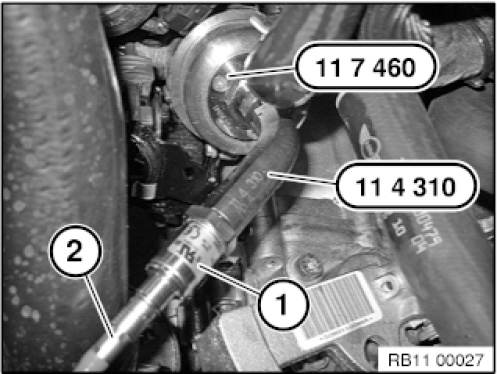

Connect cable (2) of IMIB (Integrated Measurement Interface Box) to pressure sensor (1) 100 bar.
Start engine and check engine oil pressure.







Assemble engine.
