Oil Pan: Service and Repair

11 13 000 Removing And Installing, Sealing Or Replacing Oil Sump (N16)

Special tools required:







Necessary preliminary tasks:
- Drain engine oil.

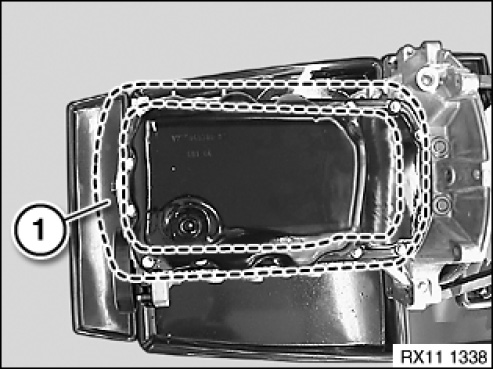

Unscrew sump bolts in area of line (1).

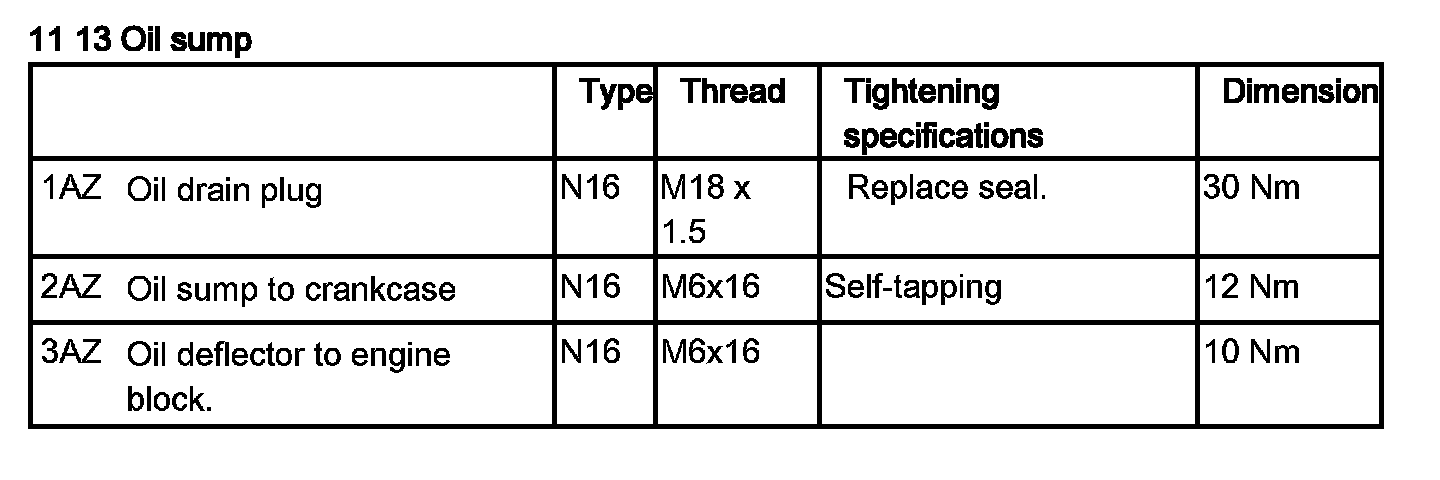

Tightening torque: 11 13 2AZ.

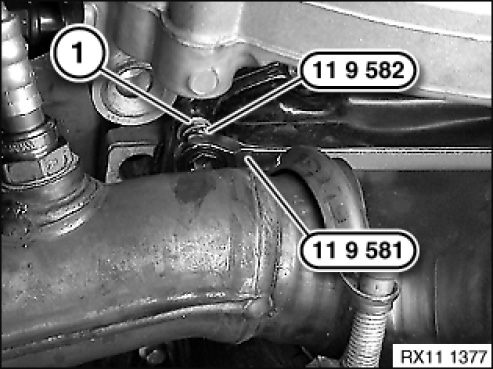

Remove bolt (1) above exhaust manifold using special tools 11 9 582 and 11 9 581.
Tightening torque: 11 13 2AZ.

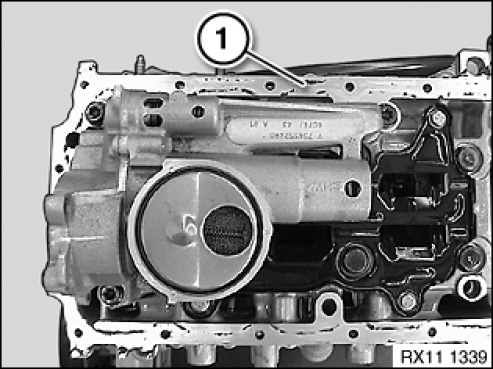

Clean sealing surface (1) with special tool 11 4 470.







IMPORTANT:
Do not use adhesive sealing bead.

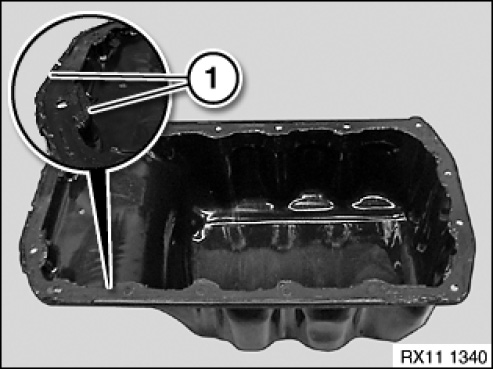

Remove protruding or surplus sealing beads (1) with a suitable tool.

Installation note:
Do not use liquid seal.

A metal substrate gasket is available for repairs (see BMW Parts Service).







Assemble engine.
