Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

11 43 000 Removing And Installing/Replacing Guide Tube For Dipstick (N16)







Necessary preliminary tasks:
- Pull dipstick out of guide tube.

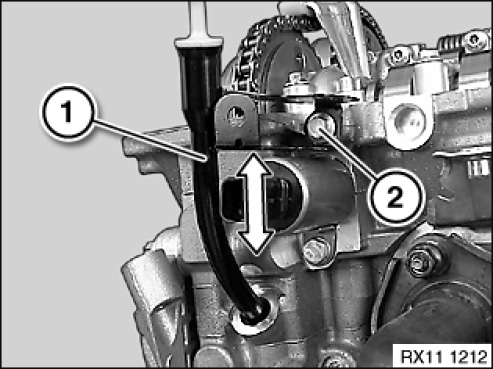

Release screw (2).

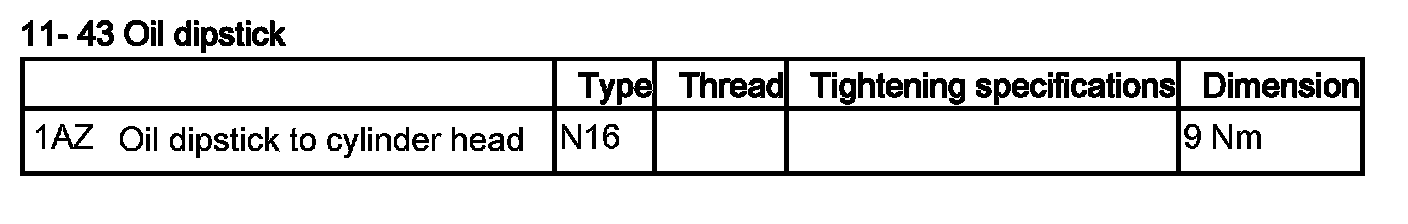

Tightening torque: 11 43 1AZ.
Remove oil dipstick (1) upward in direction of arrow.

Installation note:
Replace O-ring.







Assemble engine.
Check engine oil level, top up if necessary
