Harmonic Balancer - Crankshaft Pulley: Service and Repair

11 23 010 Removing And Installing Or Replacing Vibration Damper (N16)







Necessary preliminary tasks:
- Remove drive belt.

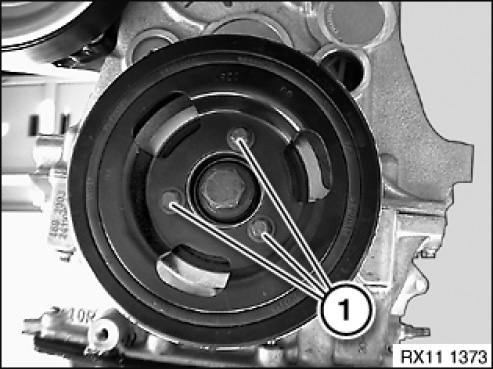

Release screws (1).
Tightening torque: 11 23 1AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2
Remove vibration damper.







Assemble engine.
