Removing and Installing Lock Bridge

41 33 695 Removing and installing lock bridge

Necessary preliminary tasks:
- Remove pull cable for bonnet/hood locks (without bonnet/hood locks)
- Release front radiator grille at top middle

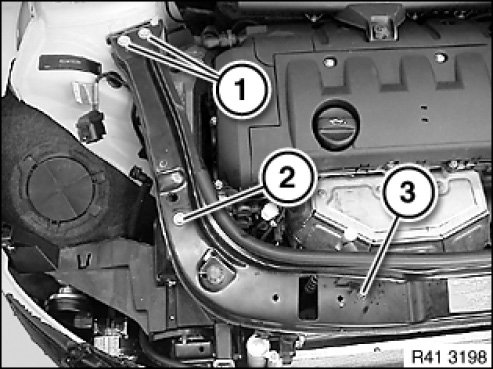

Release screws (1).
Tightening torque 51 11 7AZ.
Unfasten screws (2 and 3).

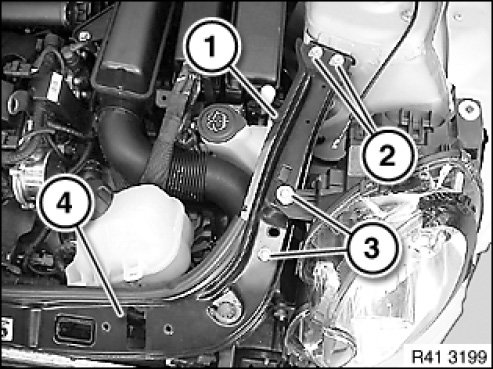

Release clip (1).
Release screws (2).
Tightening torque 51 11 7AZ.
Release screws (3) and feed out lock bridge (4) towards front.
