51 23 110 Removing and Installing/Replacing Left Hood/Bonnet Lock

51 23 110 Removing And Installing/Replacing Left Hood/Bonnet Lock

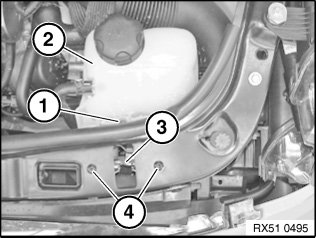

Release screw (1).

Feed out expansion tank (2) and lay to one side.

Release screws (4) and feed out hood/bonnet lock (3).

Tightening torque 51 23 3AZ.

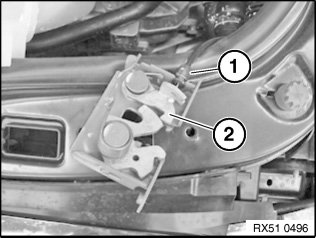

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).
