65 50 563 Replacing Navigation Display/Central Information Display

65 50 563 - Replacing navigation display





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove complete navigation instrument cluster 62 10 130 Removing And Installing Complete Navigation Instrument Panel

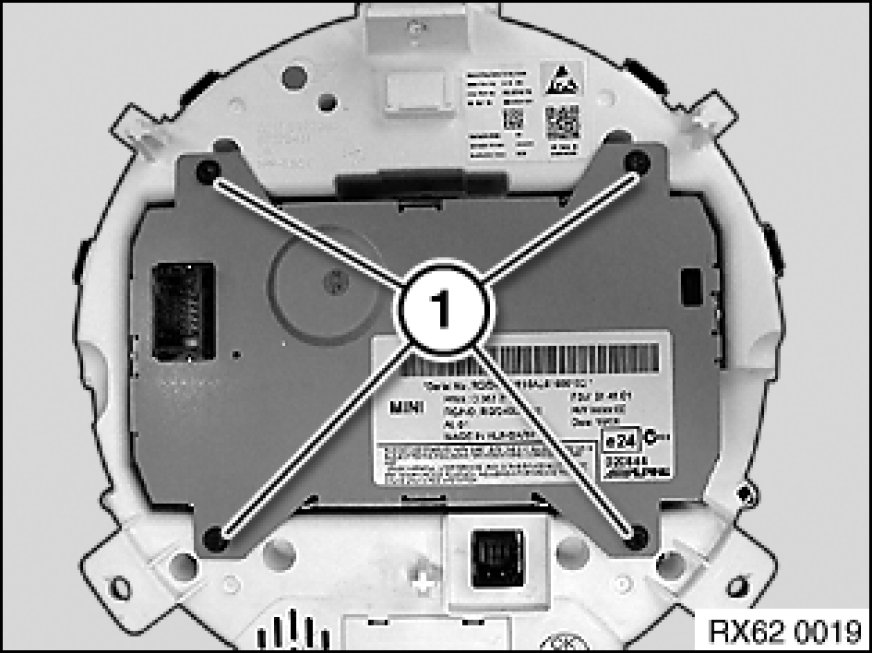

Release screws (1).
Remove navigation display from instrument cluster.
