62 10 631 Replacing Navigation Instrument Panel

62 10 631 Replacing Navigation Instrument Panel







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary tasks:
- Disconnect negative battery cable
- Remove complete navigation instrument panel

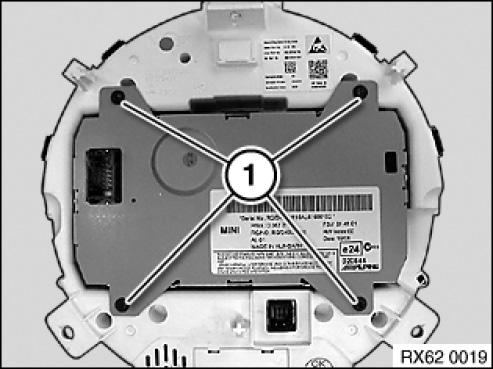

Release screws (1).
Remove navigation display from instrument cluster.
