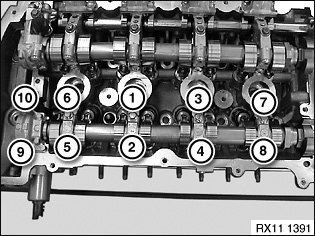

Sequence




Intake
Tighten bearing caps from inside outwards

Exhaust






Secure screws in sequence (1 to 10).
