23 11 222 Replacing Radial Drive Shaft Seal (GS6-53BG/53DG/55BG)

23 11 222 - Replacing radial drive shaft seal (GS6-53BG/53DG/55BG)





Special tools required:
- 23 0 380
- 23 0 490





Note:
After completion of work, check transmission fluid level 00 11 229 Oil Change In Manual Gearbox.

Use only the approved transmission fluid .

Failure to comply with this requirement will result in serious damage to the manual transmission!





Necessary preliminary tasks:
- Remove transmission
- Remove clutch release bearing Service and Repair.





Release bolts (1) and remove guide tube (2).





Drive a hole into radial shaft seal (1) using a center punch.

Important!
Do not use a drill as drillings may result in transmission malfunction.

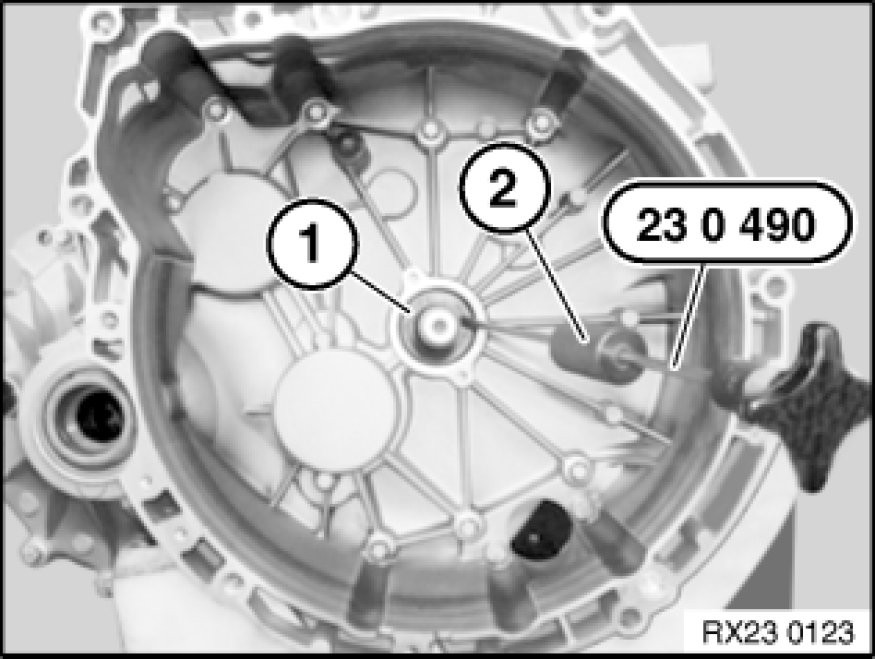

Screw in special tool 23 0 490 .

Drive out radial shaft seal (1) with impact weight (2).





Installation:
Coat sealing lips of radial seal with gear oil.

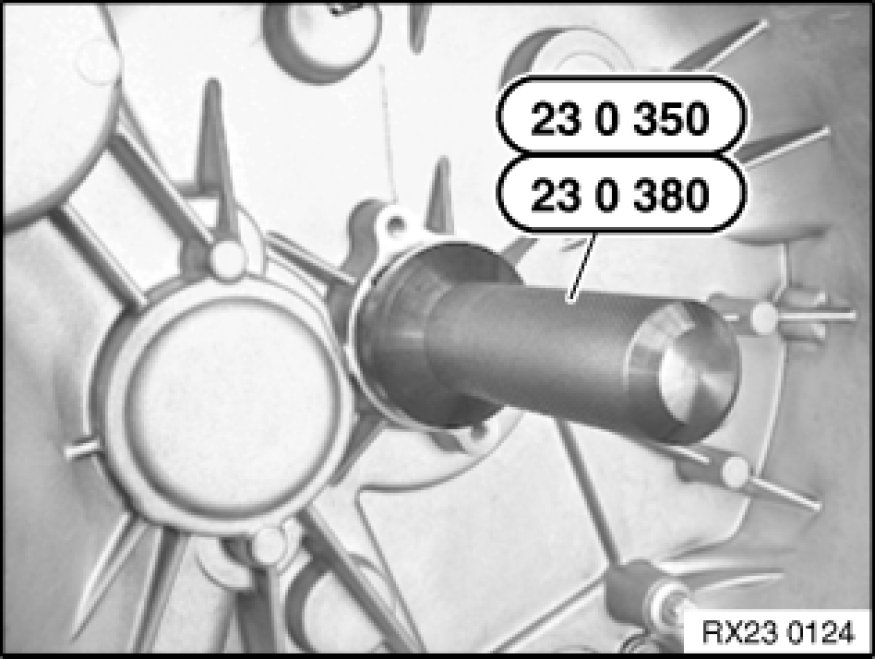

Push radial seal onto special tool 23 0 380 and drive firmly home.
