23 11 ... Transmission Designations

23 11 ... Transmission designations

Breakdown of MINI designation:

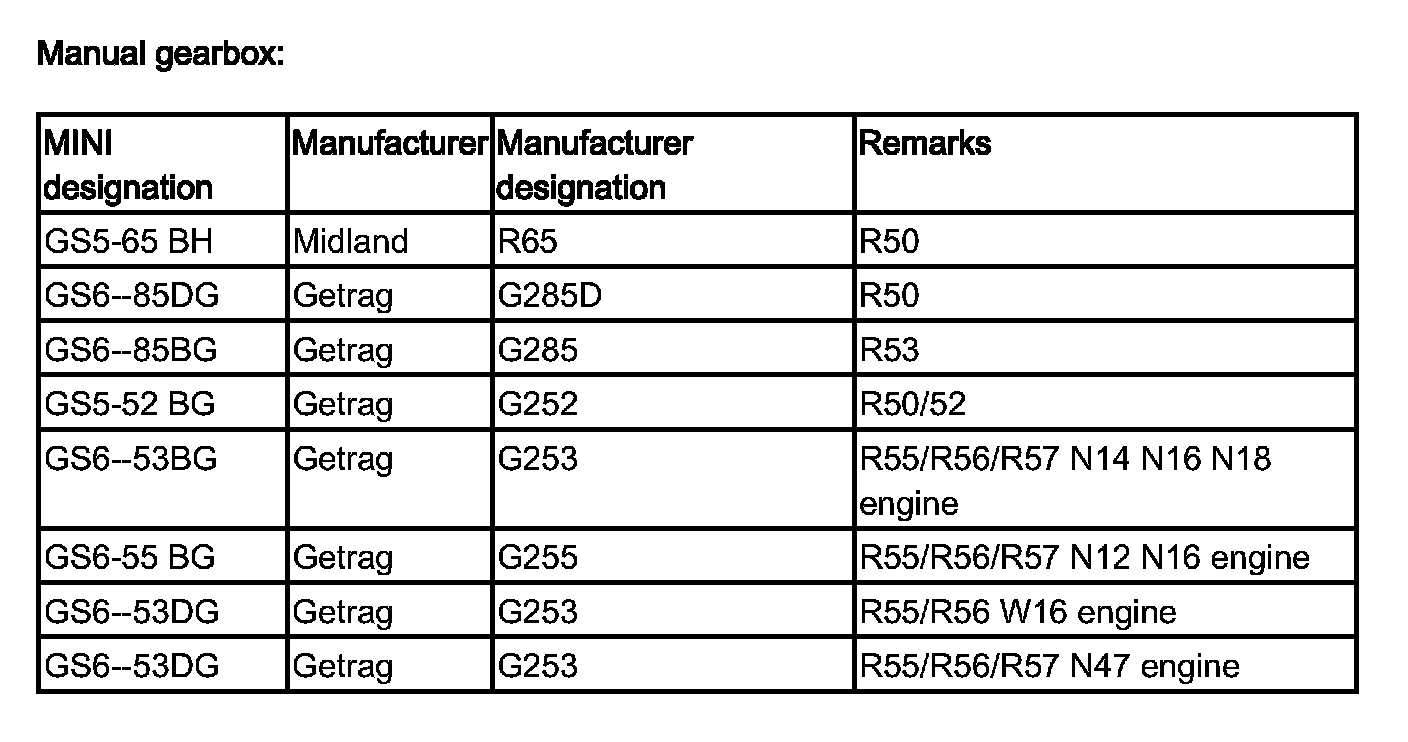

Manual gearbox:

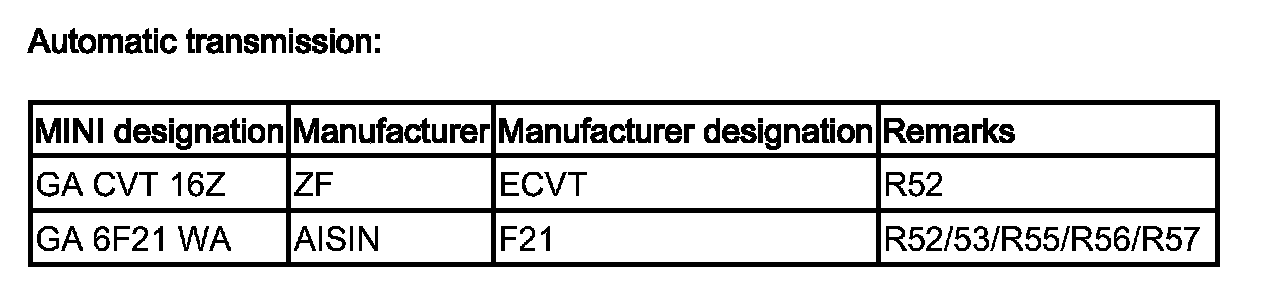

Automatic transmission:

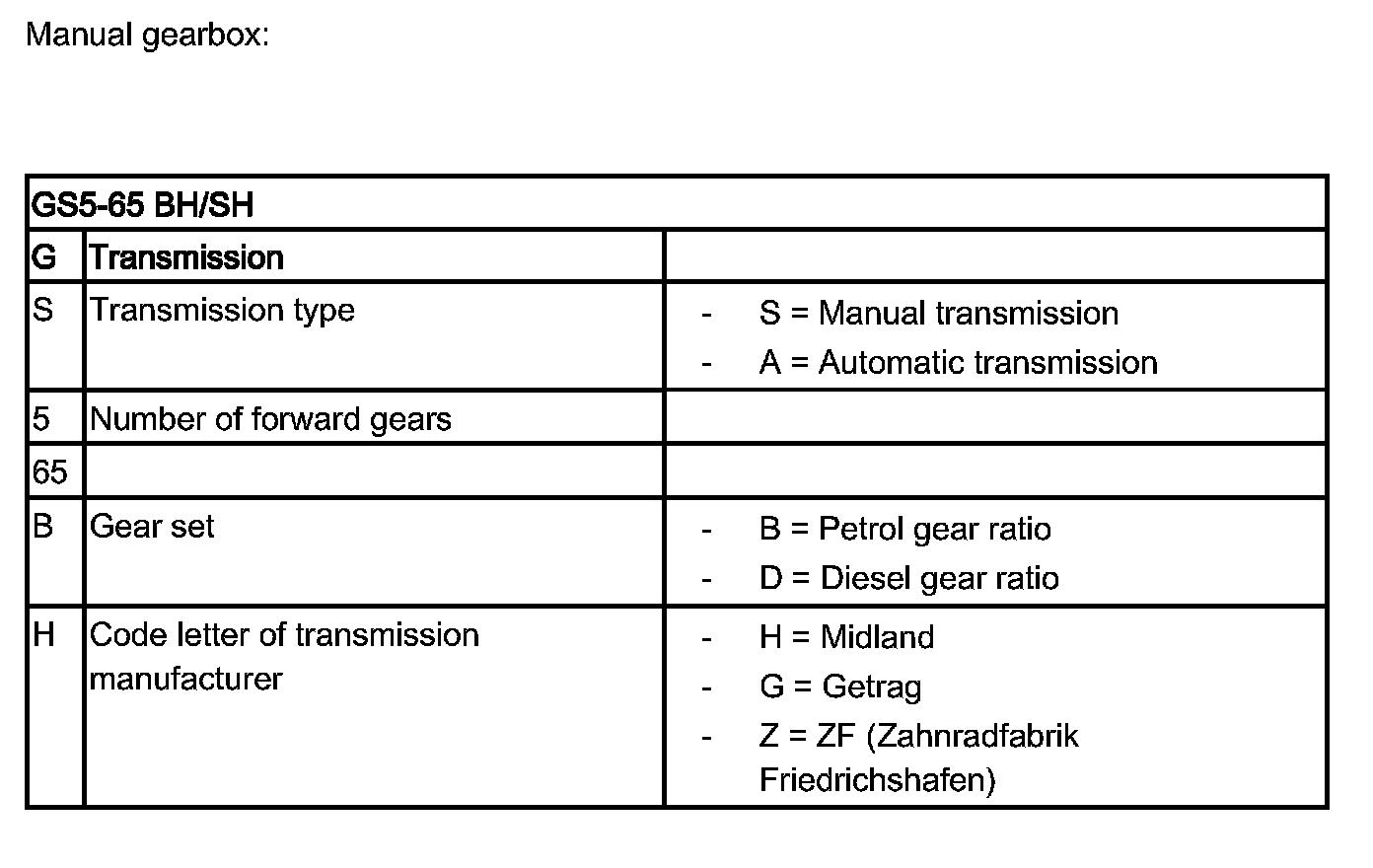

Manual gearbox:

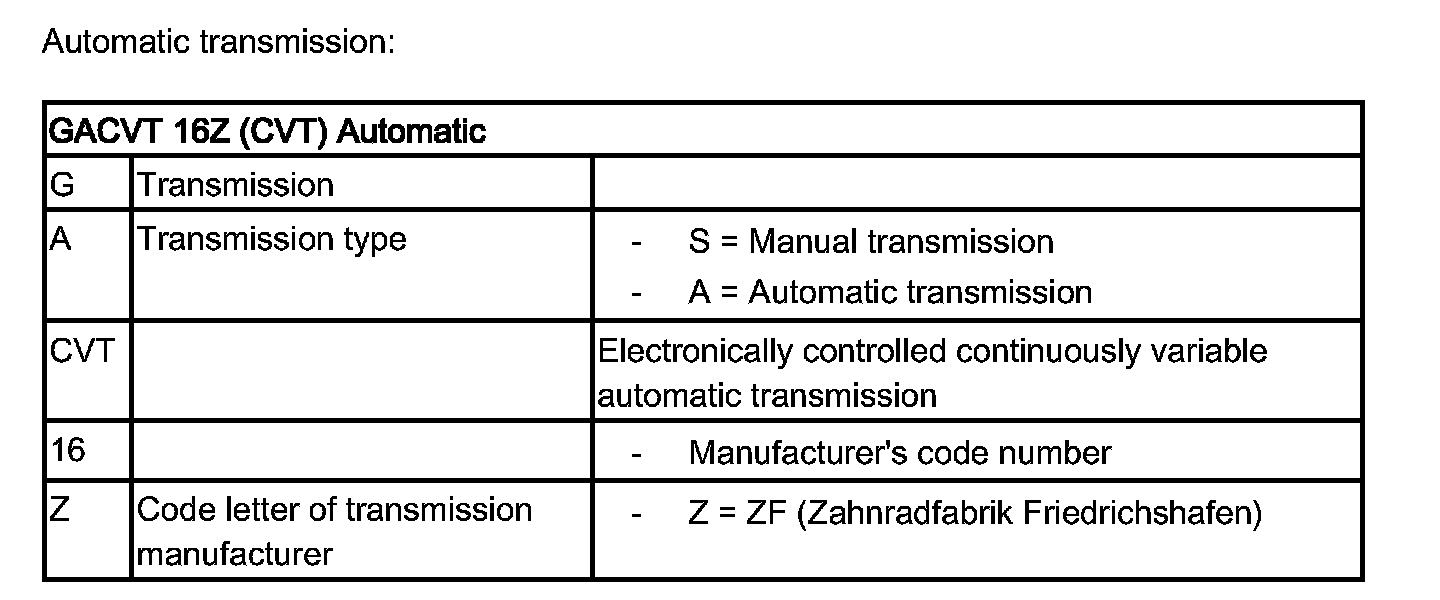

Automatic transmission:
