Timing Component Alignment Marks: Locations

The procedure for "Checking Camshaft Timing" can be found under Camshaft, Engine Testing and Inspection

The following is taken from "Adjusting camshaft timing (N14)"
Adjustments

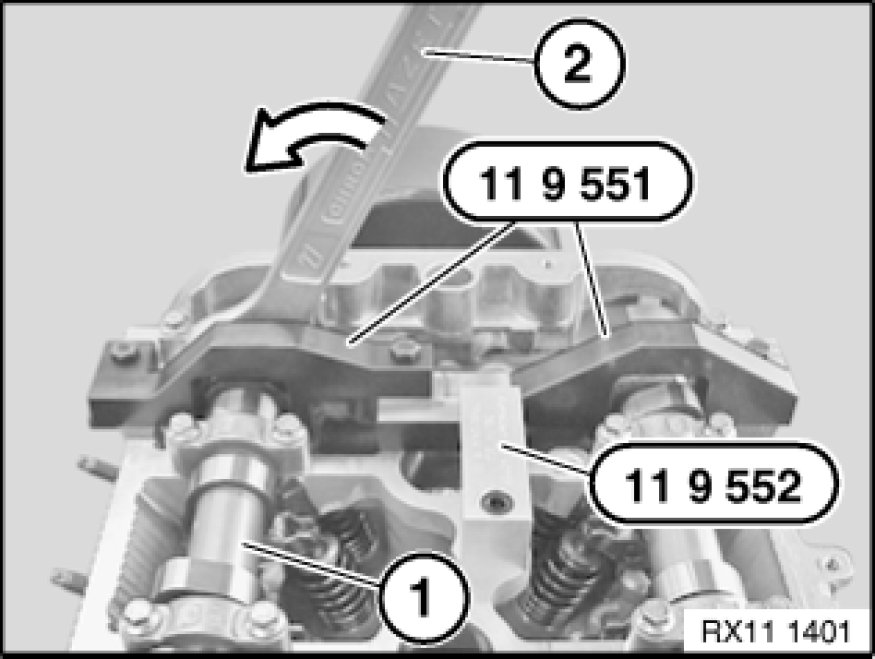

To open central bolt, mount special tool 11 9 551 11 9 550 Gauge on camshaft.
