Replacing Halogen Bulb for Left or Right Front Fog Lamp




63 99 201 - Replacing halogen bulb for left or right front fog lamp





Warning!
Follow instructions for handling light bulbs (exterior lights) 63 99 ... Instructions For Handling Light Bulbs (Exterior Lights).

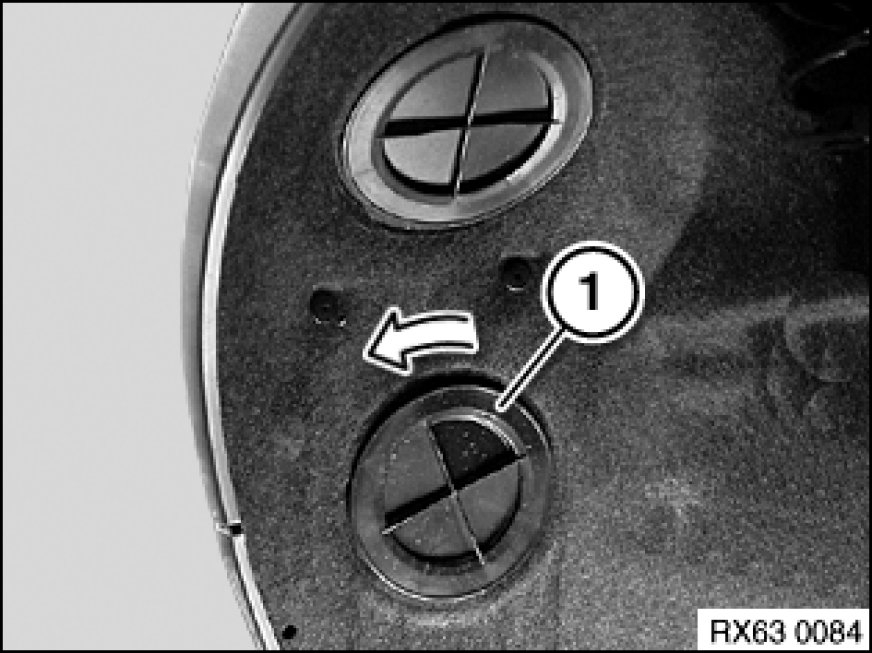

Turn cover (1) in direction of arrow and remove.

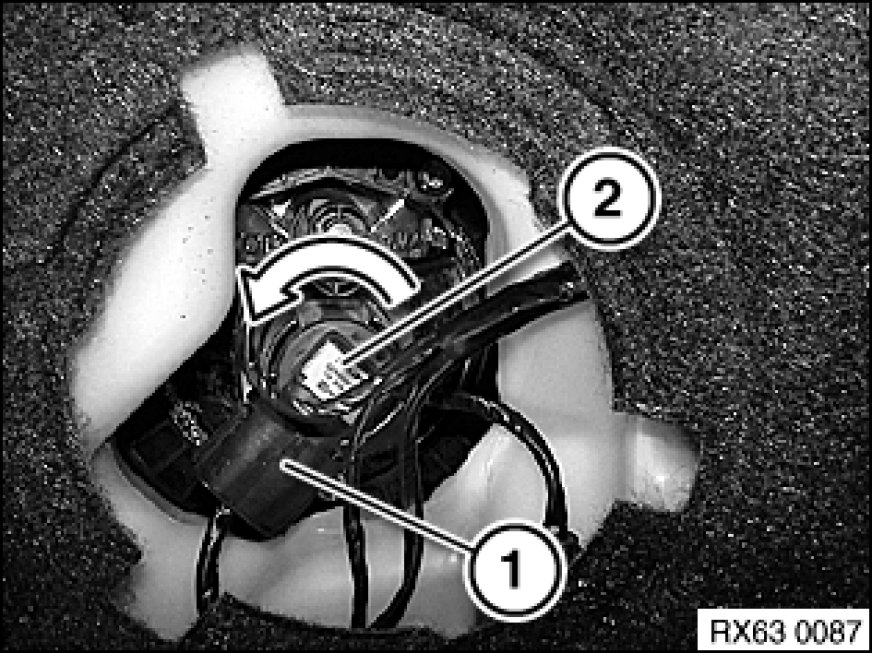

Disconnect plug connection (1).
Turn bulb (2) in direction of arrow and remove from fog lamp.

Installation Note:
Note type of bulb.
