64 11 212 Removing and Installing/Replacing Heater/Air Conditioner Fan

64 11 212 Removing and installing/replacing heater/air conditioner blower







Necessary preliminary work:
- Remove instrument panel trim at bottom left (driver's side)

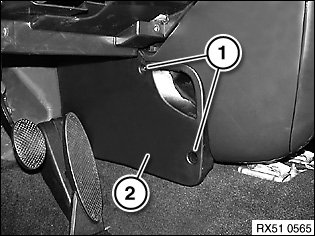

Release screws (1) and remove cover (2).

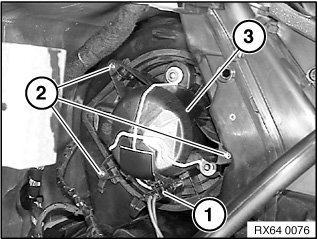

NOTE: For purposes of clarity, illustration shows dashboard removed.







Disconnect plug connection (1).
Release screws (2) and feed out blower (3).
