Convertible Top Position Sensor / Switch: Service and Repair

61 31 077 - Removing and installing/replacing switch for Convertible top/rear window shelf





Necessary preliminary tasks:
- Remove locator for rear window shelf on left 51 46 020 Removing and Installing Left or Right Locator For Rear Parcel Shelf

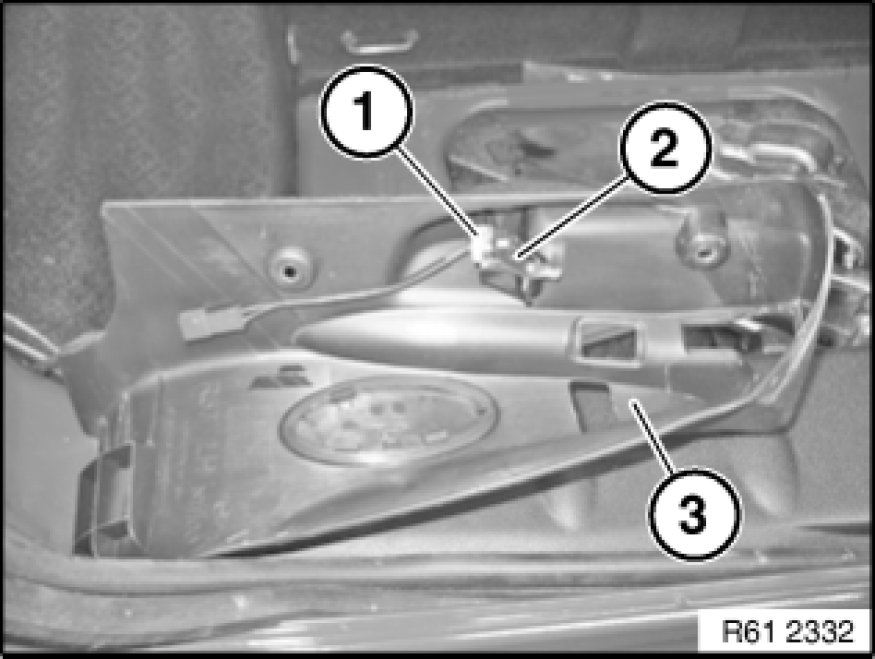

Release screw (1).
Remove switch for Convertible top/rear window shelf (2) from locator for rear window shelf (3).
Make sure switch (2) is correctly seated.
