51 14 110 Removing and Installing/Replacing Rear Model Designation

51 14 110 Removing And Installing/Replacing Rear Model Designation

IMPORTANT: The Instructions for adhering badge emblem serve as the basis for these repair instructions and must be followed without fail.

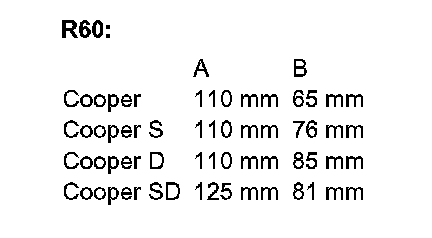

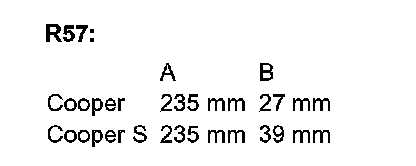

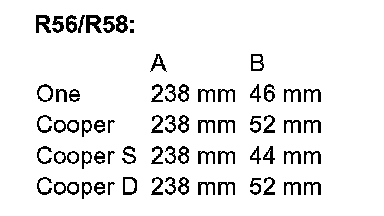

Installation dimensions:

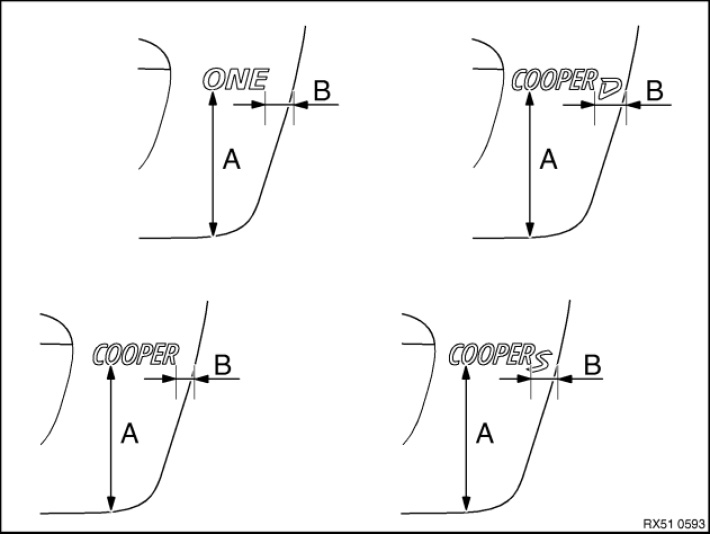

Mark position of model designation with adhesive tape using dimensions (A and B).
Position model designation on mark and stick on.

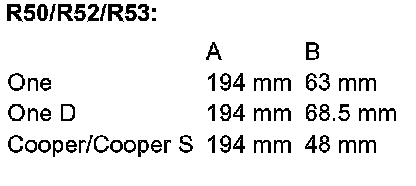

R50/R52/R53:
