51 11 300 Removing and Installing/Replacing Centre Cover

51 11 300 Removing and installing/replacing centre cover

Special tools required:







IMPORTANT:
Risk of damage.
Tape off bumper in working area with adhesive tape.

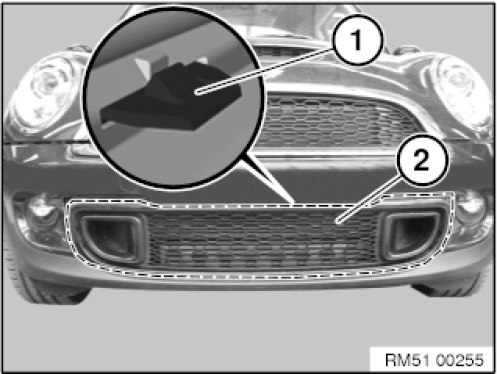

Remove cover (2) at latch mechanisms (1) in lower area using special tool 00 9 325.
Pull cover (2) at bottom slightly forwards and manually remove upper latch mechanisms (1).
Remove cover (2).

Installation note:
Latch mechanisms (1) on cover (2) must not be damaged.
First thread out the cover (2) to the side.







Replacement:
- Modify ornamental grille
