51 11 152 Removing and Installing/Replacing Center Spoiler on Bumper Trim

51 11 152 Removing and installing/replacing centre spoiler on bumper trim







Necessary preliminary work:
- Necessary preliminary work:

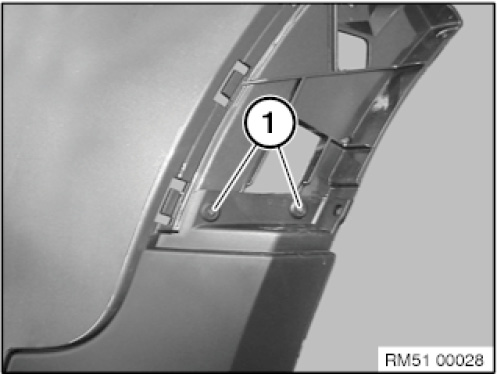

Release left and right expanding rivets (1).







Installation note:
Replace expanding rivets.

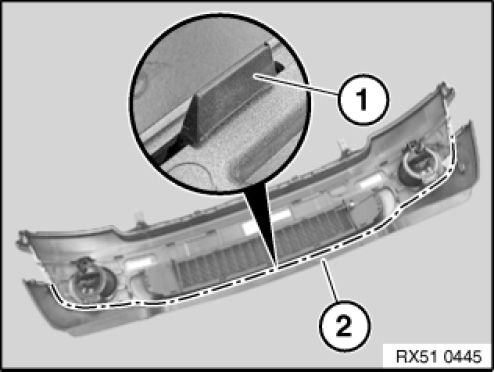

Release latch mechanisms (1) and remove spoiler (2).

Installation note:
Latch mechanisms (1) must not be damaged.







Replacement:
- Modify air guide(s)
