61 67 010 Removing and Installing/Replacing Washer Pump of Headlight Washer System

61 67 010 Removing And Installing/Replacing Washer Pump Of Headlight Washer System







Necessary preliminary tasks:
- Partially remove front left wheel arch trim







NOTE: Catch any escaping washer fluid if necessary.

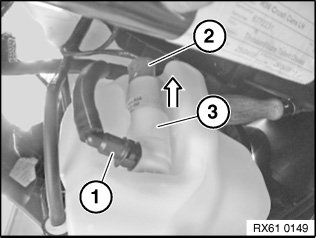

Unlock catch (1) and detach hose from washer pump of headlight washer system (3).
Disconnect plug connection (2).
Turn washer pump of headlight washer system (3) in clockwise direction and pull in direction of arrow out of fluid reservoir for windscreen washer unit.

Installation:
Replace strainer in washer pump of headlight washer system (3).
Coat sealing ring of washer pump for headlight washer system (3) with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid reservoir.
