66 20 560 Removing and Installing/Replacing Rear Signal Sensor (Park Distance Control)

66 20 560 Removing And Installing / Replacing Signal Sensor

Necessary preliminary tasks:
- Remove right rear light

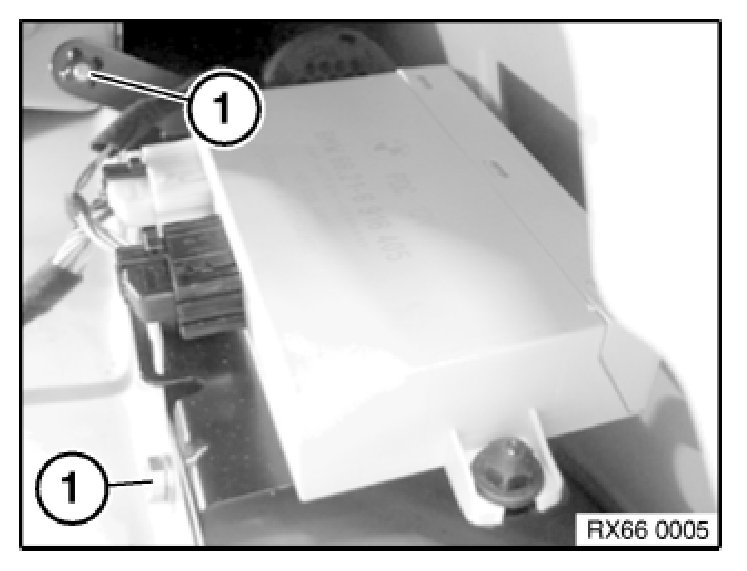

Release screws (1) and place bracket with Park Distance Control control unit to one side.

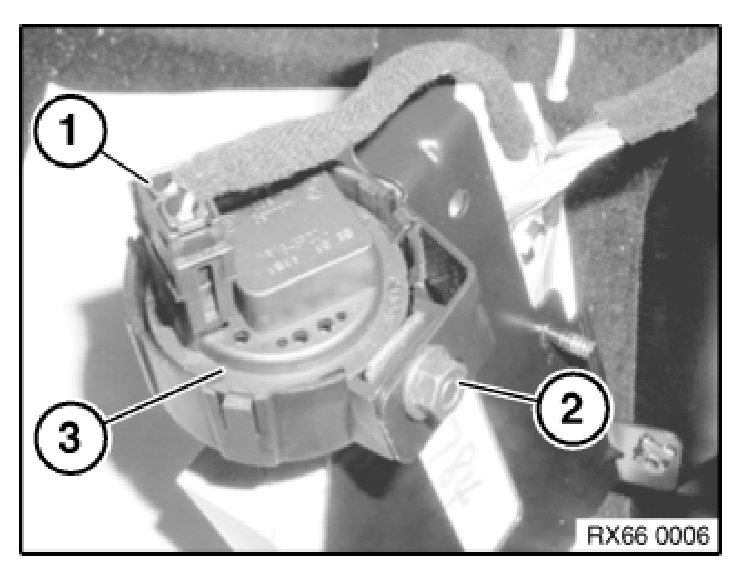

Disconnect plug connection (1).
Release nut (2) and remove signal sensor (3).

Installation:
When installing, make sure that fitting lug of signal sensor (3) is situated in mounting.
