72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 Removing And Installing/replacing Rear Left Or Right Seat Belt

Necessary preliminary tasks:
- Remove rear seat
- Remove C-pillar trim
- Remove left or right wheel arch trim

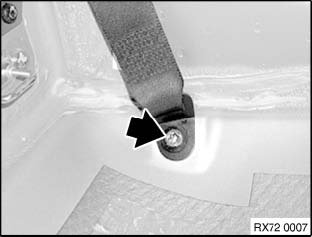

Release screw.

Tightening torque
7AZ Anchor fitting, rear seat belt 36 Nm
Type: R50/R52/R53/R55/R56

Installation:
Replace screw and insert with Loctite.
Feed out anchor fitting through C-pillar trim.

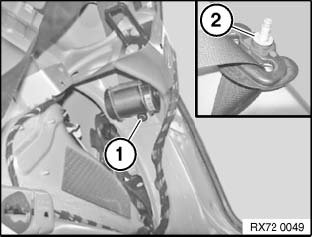

Release screw (1).

Tightening torque
5AZ Inertia reel device, seat belt, rear
- outer to C-pillar 36 Nm
Type: R50/R52/R53/R55/R56

- middle to side belt retainer holder 36 Nm
Type: R55


Installation:
Replace screw (1) and insert with locking washer (2) and Loctite.
