13 62 618 Replacing Temperature and Boost Pressure Sensor

13 62 618 Replacing Temperature And Boost Pressure Sensor

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

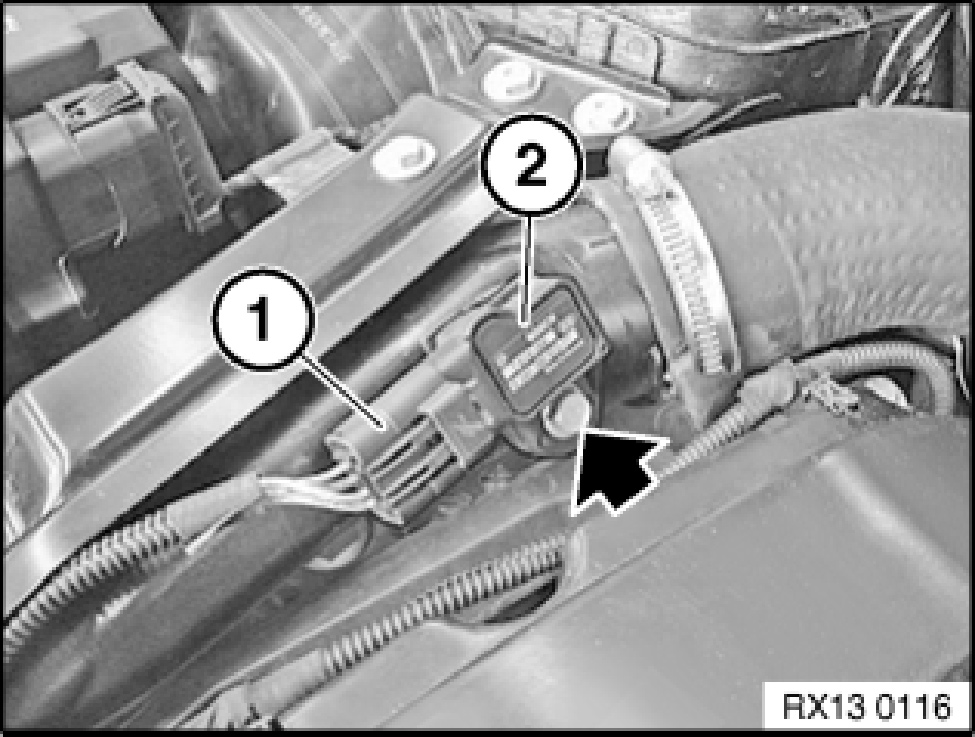

Unlock plug (1) and remove.
Release screw and detach sensor (2) from charge air duct.

Installation:

- Check sealing ring for damage, replace if necessary.
- When installing, coat sealing ring with suitable antiseize agent.
- Tightening torque
6AZ Temperature and boost pressure sensor
Type: N14
M6 x 18 5 Nm

Check stored fault messages.
Now clear the fault memory.
