63 21 055 Replacing a Socket Housing for Left or Right Rear Light

63 21 055 Replacing A Socket Housing For Left Or Right Rear Light

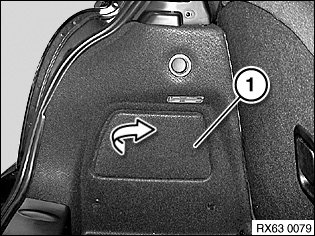

Remove cover (1).







NOTE: Rear light (2) removed for purposes of clarity.

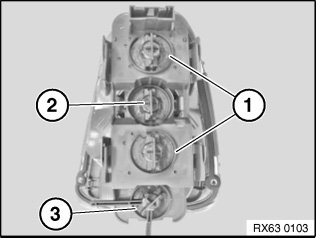

Turn socket housings (1-3) in counterclockwise direction and pull out of rear light.
1. Socket housing, rear light/brake light
2. Socket housing, direction indicator
3. Socket housing, reversing light
