Removing and Installing Engine

11 00 050 Removing and installing engine (N14)

Special tools required:





Necessary preliminary tasks:
^ Remove exhaust system.
^ Drain engine oil.
^ Disconnect negative battery lead.
^ Remove both output shafts.
^ Remove air cleaner housing.
^ Detach all coolant hoses from engine.
^ Detach vacuum line from brake booster.
^ Unfasten engine wiring harness and lay to one side.
^ Remove complete front panel

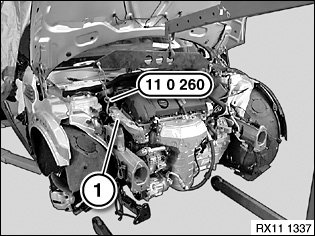

Attach special tool 11 0 260 to lifting eye (1) on engine.

Note:
Pictures show N12.

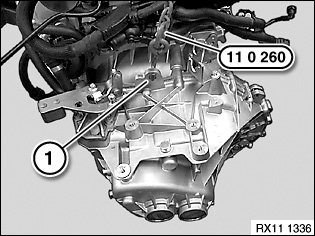

Attach special tool 11 0 260 to lifting eye (1) at transmission end.

Note:
Pictures show N12.

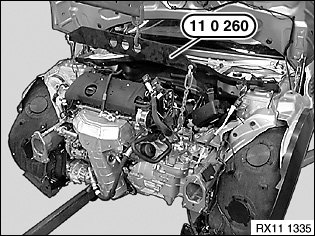

Remove engine with special tool 11 0 260 towards front.

Note:
Pictures show N12.

Assemble engine.

Check function of DME.
