11 00 ... Removing and Installing/Replacing Acoustic Cover



Removing and Installing/Replacing Acoustic Cover (N14)

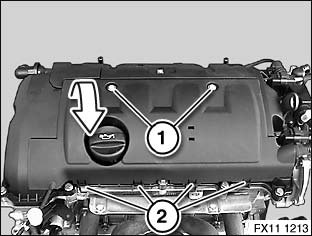

Release screws (1).

Tightening Acoustic cover to cylinder head cover
11AZ Acoustic cover to cylinder head cover
M6x40 8.5 Nm

Release acoustic cover at retainers (2).
Lift off acoustic cover in direction of arrow.
