Home
>>
Mini
>>
2010
>>
Cooper JCW (R56) L4-1.6L Turbo (N14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

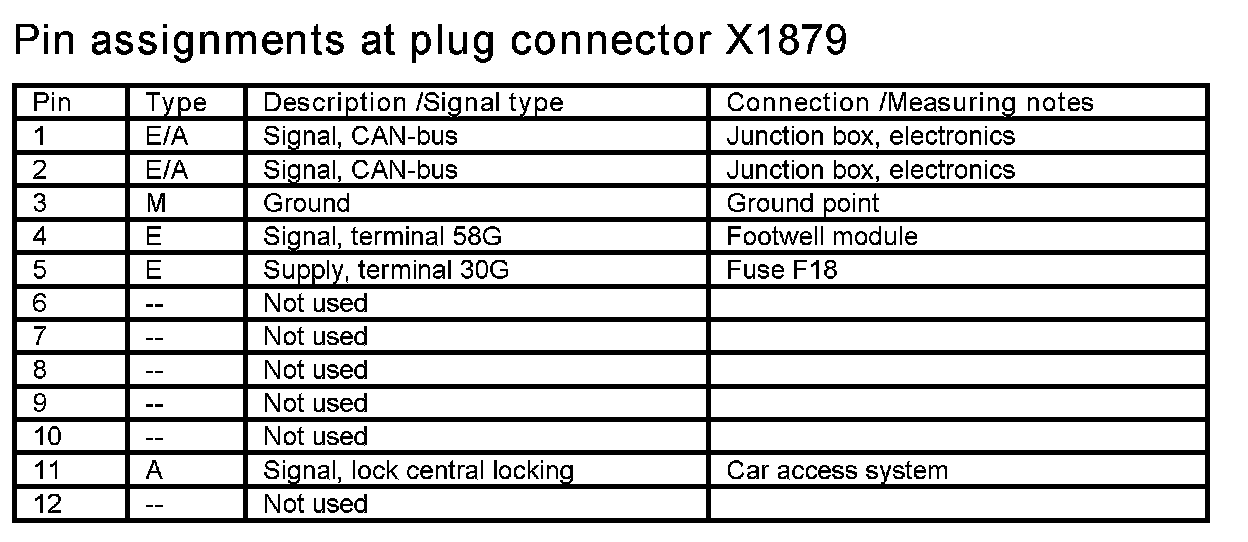

X1879
>>
A11A Heating/Air Conditioning System (Without IHKA Integrated Automatic Heating/Air Conditioning)
A11A Heating/Air Conditioning System (Without IHKA Integrated Automatic Heating/Air Conditioning)
X1879
