FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mini
>>
2010
>>
Cooper JCW (R56) L4-1.6L Turbo (N14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

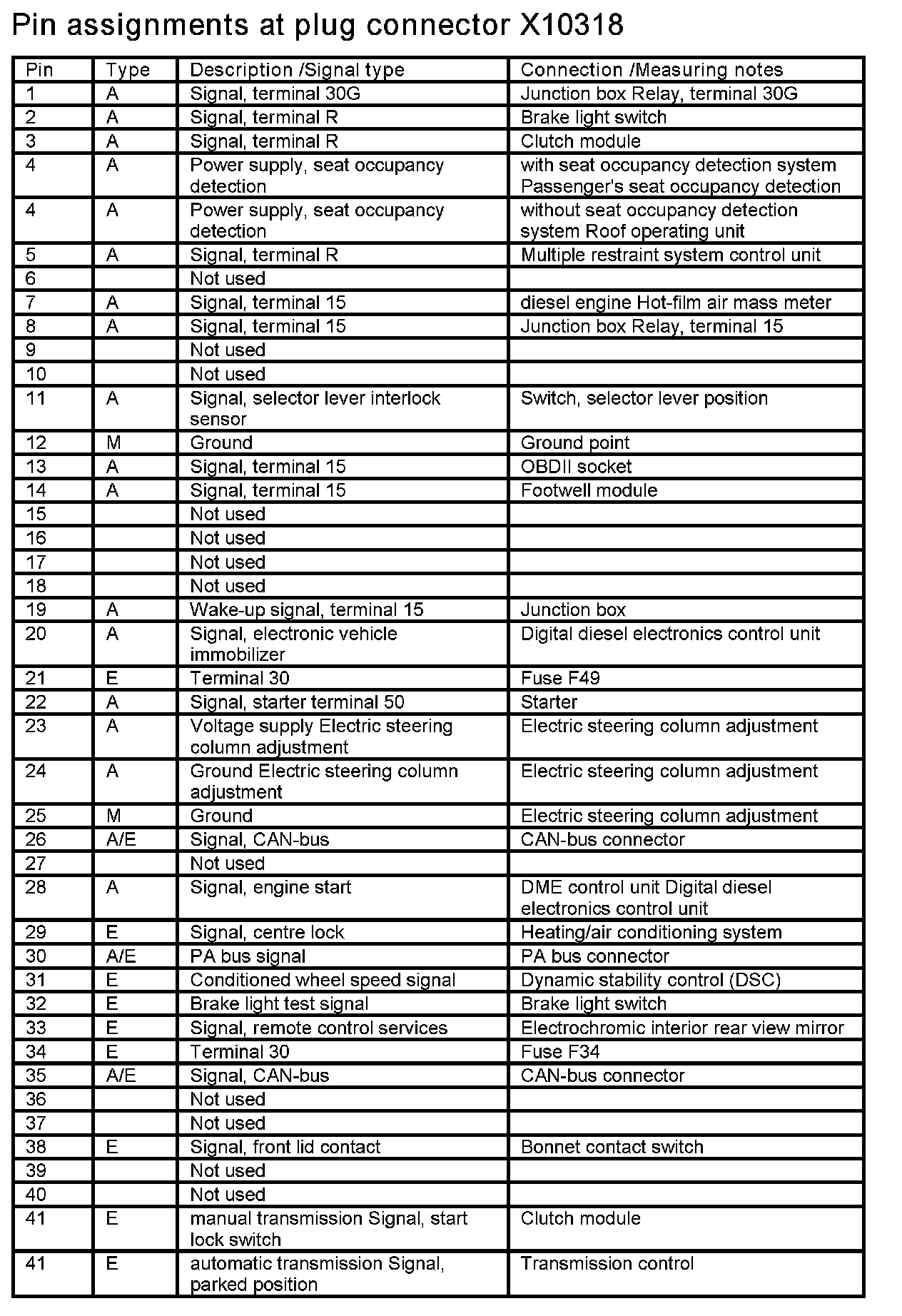

X10318
>>
Up to 08/07
Up to 08/07
X10318
A149a Car Access System
