52 26 311 Removing And Installing/replacing Lock For Left Or Right Rear Seat Backrest



52 26 311 Removing And Installing/replacing Lock For Left Or Right Rear Seat Backrest

Necessary preliminary tasks:
- Remove backrest cover

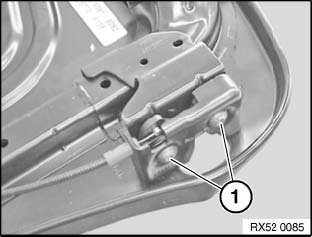

Release screws (1).
Tightening torque: 52 26 1AZ

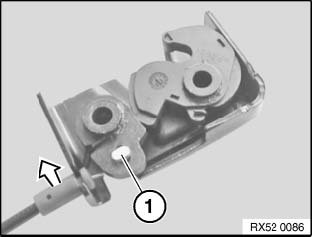

Unclip Bowden cable (1) and feed out from rear seat backrest lock.
