52 26 201 Removing And Installing/replacing Rear Panel On Rear Seat Backrest



52 26 201 Removing And Installing/replacing Rear Panel On Rear Seat Backrest

Necessary preliminary tasks:
- Remove backrest cover for rear seat

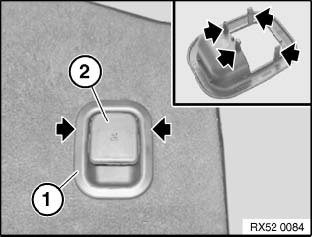

Unclip trim (1) and feed out from lever (2).

Installation:
Retaining lugs must not be damaged.
If necessary, replace faulty trim (1).

Remove rear panel from backrest frame.
