52 26 011 Removing And Installing/replacing Backrest For Left Rear Seat

52 26 011 Removing And Installing/replacing Backrest For Left Rear Seat

Necessary preliminary tasks:
- If necessary, remove middle head restraint







Unlock backrests and fold down.

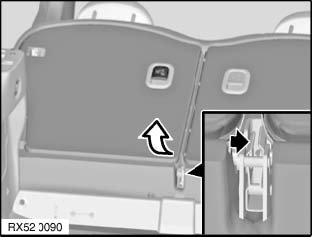

Press retaining tab in centre of car and lift left backrest out of central hinge.

Installation:
Backrest must audibly snap into place in central hinge.

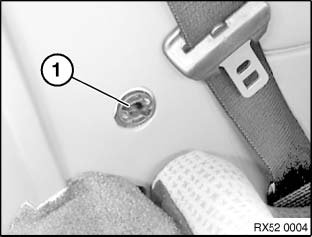

NOTE: Turn backrest and remove bearing bushing (1).
