52 13 030 Removing and Installing/Replacing Backrest Frame on Front Seat (Manual/Electric)

52 13 030 Removing And Installing/Replacing Backrest Frame On Front Seat (Manual/Electric)







Necessary preliminary tasks:
- Remove seat fabric
- Remove backrest cover

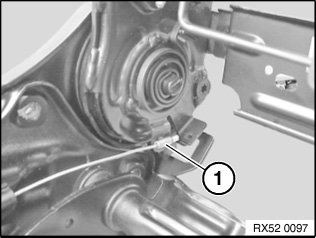

Disengage Bowden cable (1) from release mechanism.

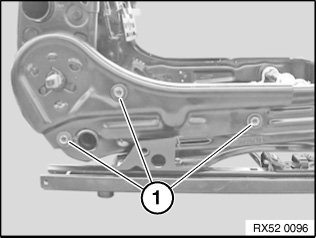

Release bolts (1).

Installation:
Replace screws and insert with Loctite.

Tightening torque 52 13 03AZ.

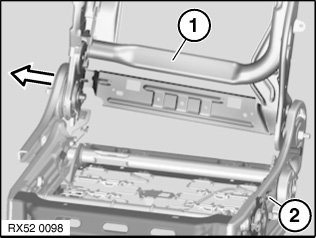

Remove backrest frame (1) from seat mechanism (2).







Replacement only:
If necessary, remove lumbar support.
