52 13 ... Removing and Installing/Replacing Seat Height Adjuster on Left or Right Front Seat






52 13 ... Removing And Installing/Replacing Seat Height Adjuster On Left Or Right Front Seat

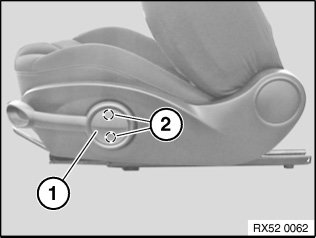

Lever out cover (1) with plastic wedge.
Release screws (2) underneath and remove seat height adjuster.
Tightening torque: 52 13 08AZ.
