52 26 022 Removing and Installing Striker For Left or Right Rear Seat Back

52 26 022 Removing And Installing Striker For Left Or Right Rear Seat Back







Necessary preliminary tasks:
- Move backrest back







Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use







Remove cover from lock striker.

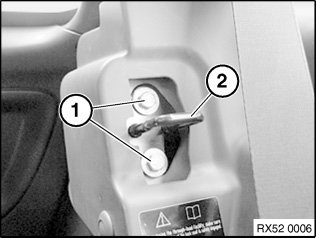

Release screws (1).
Tightening torque 52 26 04AZ.
Remove striker (2).

Installation:

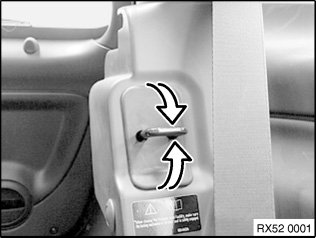

Adjust striker (2).







R57 Series only:
Release screws (1).
Tightening torque: 52 26 04AZ.
Remove striker (2).

Installation:
Adjust striker (2).
